Portable Mini Portable Blak Easy Take Cell Phone Signal Repeater GSM

EASTLONGE ELECTRONICS(HK) CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Portable Mini Portable Blak Easy Take Cell Phone Signal Repeater GSM

Brand Name : EST

Model Number : EST-Gmini

Certification : CE&ROHS

Place of Origin : China

MOQ : 1PC

Payment Terms : 100% before shipment

Supply Ability : 500pcs/week

Delivery Time : 1-3 working days

Packaging Details : neutral packing

Color : Black

Model no. : EST-101D

Uplink : 890-915

Downlink : 935-960

Contact Now

Mini Portable Blak Easy Take Cell Phone Signal Repeater GSM





1. Quick Detail:

1) color:Black

2) frequency: uplink 890 - 915 MHz, downlink 935 - 960 MHz

3) gain: 45 dB





2. Introduction:

Portable mini pico mobile phone signal repeater is a new product which will solve the inconvenience of mobile phone repeater installation. Therefore, there is an immediate solution to amplify mobile phone signal in a small coverage, it is good choice to have one this portable repeater, without installation and carry - on. This is the necessary device in signal blind area of business trip, travelling, home and office etc.



3. Specifications:

specification

Function condition



Uplink

Downlink

Model

Gmini

Black

890-915

935-960

Pass band ripple

<6.0dB

Max gain

45±2dB

Gain Adjust Range

43dB~47dB

Max Export

power

Uplink

5±2dBm



Downlink

5±2dBm

AGC

Automatic gain adjustment range  20dB

Noise figure(reverse)

<7dB(Max Gain)

Inter-Modulation Attenuation

9KHz~1GHz    ≤-36dBm @ 3KHz



1GHz~12.75GHz ≤-36dBm@ 3KHz

Out-of-band spurious emission



9KHz~1GHz    ≤-36dBm @ 3KHz



1GHz~12.75GHz ≤-36dBm@ 3KHz

Transmission delay



<5us

VSWR

<1:2

Ambient temperature

-10~+50℃

Indicator

ISO red(Isolation testing)



UP green(uplink power)



DN green(downlink power)

Power supply

DC+5V

I/O Impedance

50Ω

input/output connector

Base station :SMA







4. Feature Advantage:

1) Exquisite appearance: adopting disposable molding and injection appearance, beautiful as crafts, small size and easy - taking.
2) Powerful function: amplifying all kinds of mobile phone signal within 1-30 square meters and the best assistant for mobile phone communication.


5. Working Area:

Residential areas
Villas
All kinds of entertainments, e.g. KTV
Underground bar and coffee house
Small conference room
Signal blind spot of business trip, traveling, home and offices etc.


6. Package:

Main unit         1pc
Power supply      1pc
User manual       1pc
Quality certificate   1pc

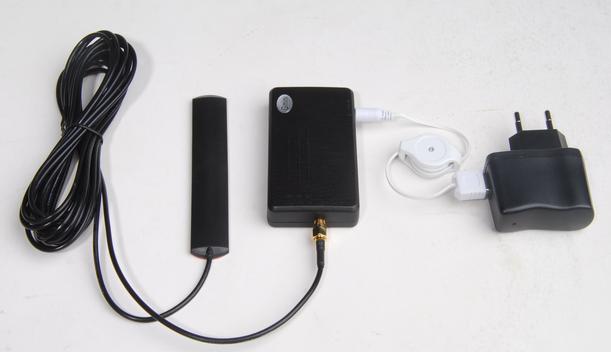

7. Picture

Portable Mini Portable Blak Easy Take Cell Phone Signal Repeater GSM
