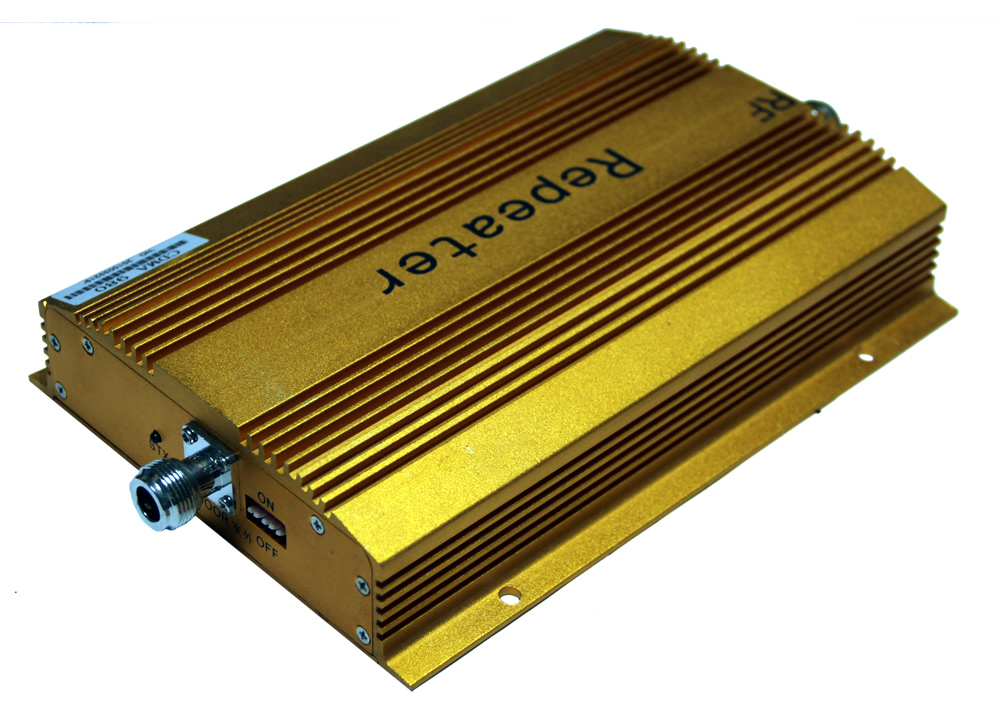

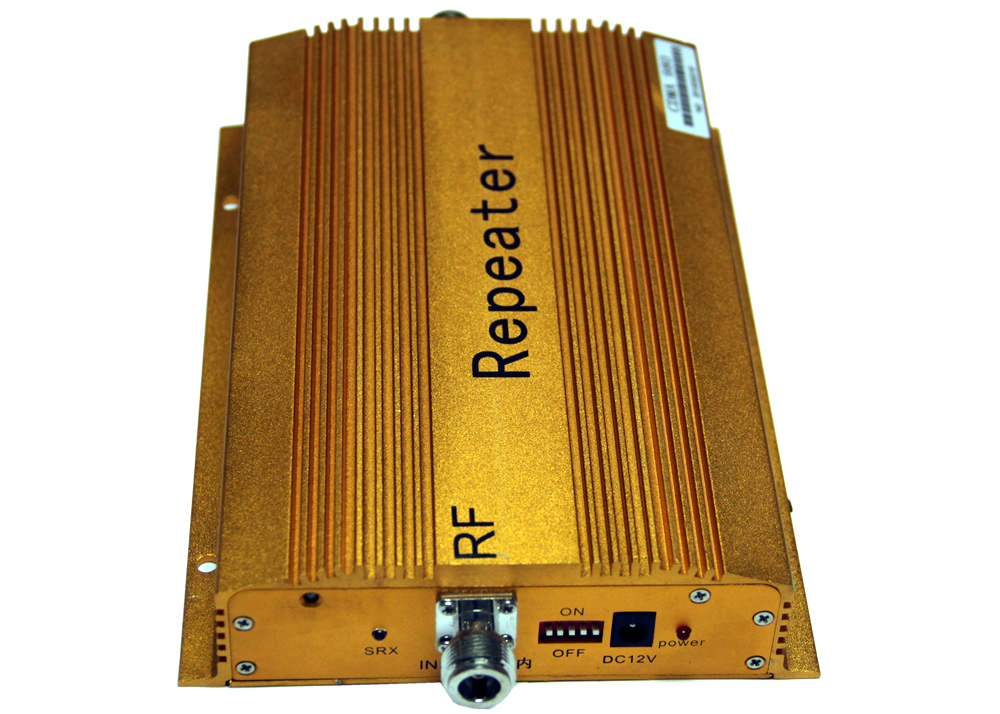

CDMA 850MHZ Cell Phone Signal Amplifier For Office , 824—849MHZ Uplink

Place of Origin : China

Brand Name : EST

Certification : CE&ROHS

Model Number : EST-CDMA980

MOQ : 1PC

Packaging Details : neutral packing

Delivery Time : 1-3 working days

Payment Terms : 100% before shipment

Supply Ability : 500pcs/week/C

Product Name : Cell Phone Signal Repeater

Frequency range : Uplink:824—849MHZ Downlink 869-894MHz

Export power (Po) : ≥27dBm

Pass band ripple : ≤3dB

Power supply : AC110～240V 45～55Hz

coverage area : 2000 m2

Contact Now

CDMA 850MHZ Cell Phone Signal Amplifier For Office , 824—849MHZ Uplink

Quick details :

1) Frequency :Uplink:824—849MHZ Downlink 869-894MHz
2) function :Enhance Mobile Phone Signal Strength and improve indoor ctromagnetism environments
3) Easy Operation and Installation
4) Coverage area :2000m2
5) Build-in Power Supply

Technique

Frequency range	Uplink:824—849MHZ Downlink 869-894MHz
Gain ( dB)	Uplink Gp≥60 Downlink Gp≥65
Export power (Po)	≥27dBm
Pass band ripple	≤3dB
I/O impedance	50Ω/N connector
Noise figure	≤4dB
Transmission Delay	≤0.5μs
Ambient temperature	-10℃～60℃
Power supply	AC110～240V 45～55Hz
Size	220 x 140 x 40 mm
Reliability	To the GB6993-86 standard
Electromagnetic compatibility	To the ETS300 694-4 standard
Function	a) Power supply LED denote b) Export power LED denote
coverage area	2000 m2

3 Working area :

weak-signal area, e.g. underground or semi-underground rooms, small basements, underground parking lots;
Small zones: meeting rooms, supermarkets, offices, pubs, coffee shops, gyms, etc.;
Private homes or villas at outskirts with bad signal coverage.
Company information

4 product warranty

· free replacement for first three months ( our company pay the shipping cost )
· The warranty period is 3 years. ( shipping cost under customer's expenses)
· lifetime warranty :1,no big damage to the product;2,shipping cost under customer's expenses;3, Only charge for material cost depending on the specific condition ( case by case)

5 Pictures

Office

workshop

customers

Certification
