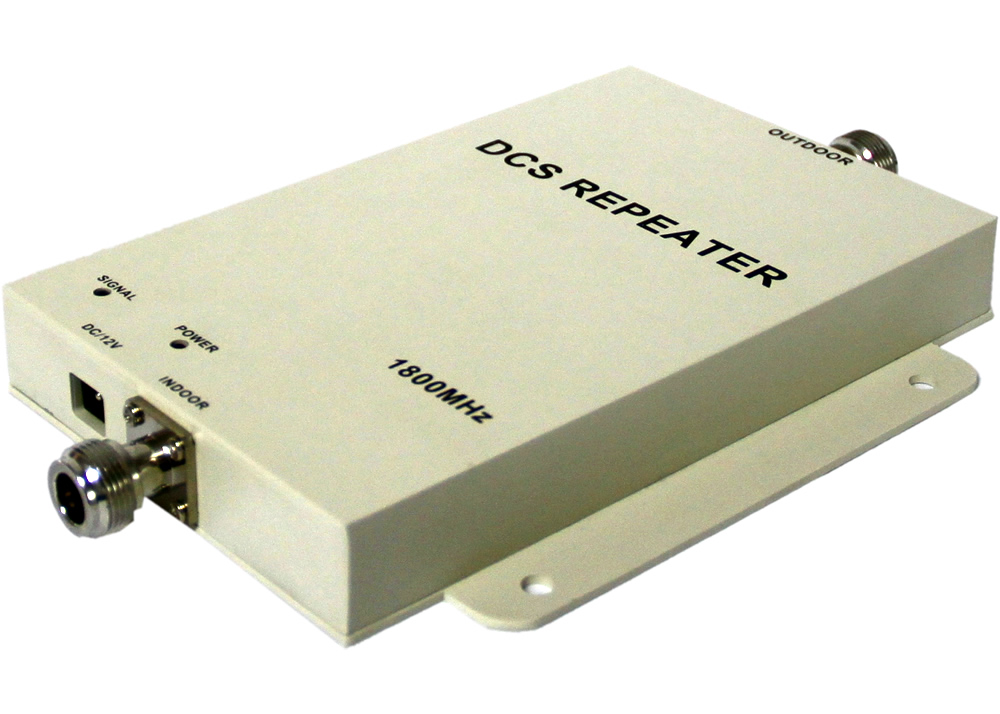

Full-duplex DCS 1800 Cell Phone Signal Repeater Cover 200m² for House

Place of Origin : China

Brand Name : EST

Certification : CE&ROHS

Model Number : EST-DCS950

MOQ : 1PC

Packaging Details : neutral packing

Delivery Time : 1-3 working days

Payment Terms : 100% before shipment

Supply Ability : 500pcs/week/J

Product Name : Cell Phone Signal Repeater

Export power (Po) : ≥27dBm

Pass band ripple : ≤3dB

Noise figure : ≤4dB

Transmission Delay : ≤0.5μs

Size : 200 ×130 ×20 mm

Contact Now

Full-duplex DCS 1800 Cell Phone Signal Repeater Cover 200m² for House

A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.

Introduction To Mobile Phone Signal Repeater

1. Enhance Mobile Phone
Signal Strength

2. Improve
Communication
Quality

3. Reduce
Cellphone
Radiation

4. Protract
Cellular Battery Life

5. Economic Building Cost

6. Easy Operation

7. Easy Installation

8. Build-in Power Supply

The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor ctromagnetism environments, protract cellular battery life and reduce radiation of cellphones.

2. Features

High gain, easy installation and operation.

Full-duplex, single-port design, build-in power supply.

Use ALC technology, adjust extent automatically

LED Light Working & Signal Condition Indicators

Big linear power, control intermodulation & scatteration stably

Dependability stand by GB6993-86 standard

Compatibility of electromagnetism according with ETS300 609-4

CE and RoHs Approved

Technique

Frequency range	Uplink:1710—1785MHZ Downlink1805--1880MHz
Gain ( dB)	Uplink Gp≥55 Downlink Gp≥60
Export power (Po)	≥17dBm
Pass band ripple	≤3dB
I/O impedance	50Ω/N connector
Noise figure	≤4dB
Transmission Delay	≤0.5μs
Ambient temperature	-10℃～60℃
Power supply	AC110～240V 45～55Hz
Size	200 ×130 ×20 mm
Reliability	To the GB6993-86 standard
Electromagnetic compatibility	To the ETS300 694-4 standard
Function	a) Power supply LED denote b) Export power LED denote
coverage area	200 m2

SpecificationsInstallation Sketch Map

Installation Approaches

Fix up outdoor antenna reception on housetop and point to signal tower.
Connect outdoor antenna to “outdoor” port in repeater machine through cable.
Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
Plug power adaptor into AC power socket and finish installation.

Technique Supporting

If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
If can not call out, please adjust the direction of outdoor antenna.
If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20

Accessories

SelectionOutdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and signal wire use coaxial-cable.

Packing list

Main unit            1pc
Power supply     1pc
User manual      1pc

Full-duplex DCS 1800 Cell Phone Signal Repeater Cover 200m² for House
